Antenna SWR measured with KC901S & KVE520 測量 業餘無線電天線

Antenna SWR measured with KC901S and KVE520

用 KC901S 網路分析儀 與 KVE520 天線分析儀

測量 業餘無線電天線

KC901S Network Analyzer and KVE520 Antenna Analyzer

KC901S 網路分析儀 與 KVE520 天線分析儀

Amateur Radio Antenna " Diamond X-6000 "

業餘無線電天線 Diamond X-6000

KC901S Network Analyzer Calibration for VHF band 142 - 148 MHz

KC901S 網路分析儀 校正於 VHF 頻帶 142 - 148 MHz ( center= 145 MHz, span=6 MHz )

50 Ohms ( ideal SWR=1.0 )

75 Ohms ( ideal SWR=1.5 )

SWR in VHF band 142 - 148 MHz ( center= 145 MHz, span=6 MHz )

measured with KC901S

measured with KVE520

KC901S Network Analyzer Calibration for UHF band 426 - 438 MHz

KC901S 網路分析儀 校正於 UHF 頻帶 426 - 438 MHz ( center= 432 MHz, span=12 MHz )

50 Ohms ( ideal SWR=1.0 )

75 Ohms ( ideal SWR=1.5 )

SWR in UHF band 426 - 438 MHz ( center= 432 MHz, span=12 MHz )

measured with KC901S

measured with KVE520

KC901S Network Analyzer Calibration for SHF band 1200 - 1300 MHz

KC901S 網路分析儀 校正於 SHF 頻帶 1200 - 1300 MHz ( center= 1250 MHz, span=100MHz )

50 Ohms N connector ( ideal SWR=1.0 )

50 Ohms BNC cnnector ( ideal SWR=1.0 )

75 Ohms BNC connector ( ideal SWR=1.0 )

SWR in SHF band 1200 - 1300 MHz ( center= 1250 MHz, span=100 MHz )

measured with KC901S

Amateur Radio Antenna for Cars " Nagaya HR770 "

業餘無線電 車天線 Nagaya HR770 ( 磁鐵吸附於角鋼上使用 )

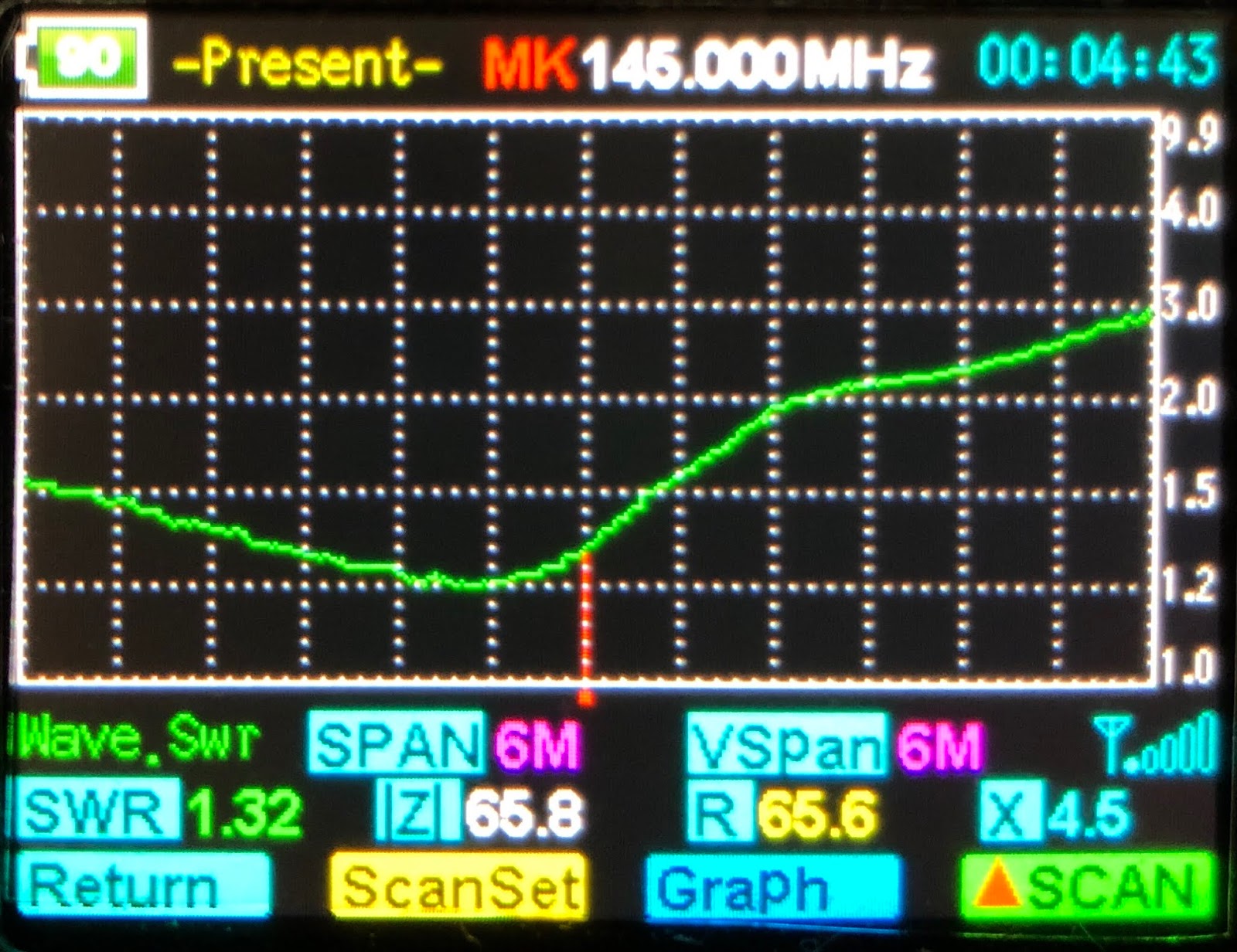

SWR in VHF band 142 - 148 MHz ( center= 145 MHz, span=6 MHz )

measured with KC901S

measured with KVE520

SWR in UHF band 426 - 438 MHz ( center= 432 MHz, span=12 MHz )

measured with KC901S

measured with KVE520

經過這次量測，感覺 KVE520 在 VHF 頻帶還可以，但是 UHF 頻帶可能不大好。


2020-08-06
2020-08-09
